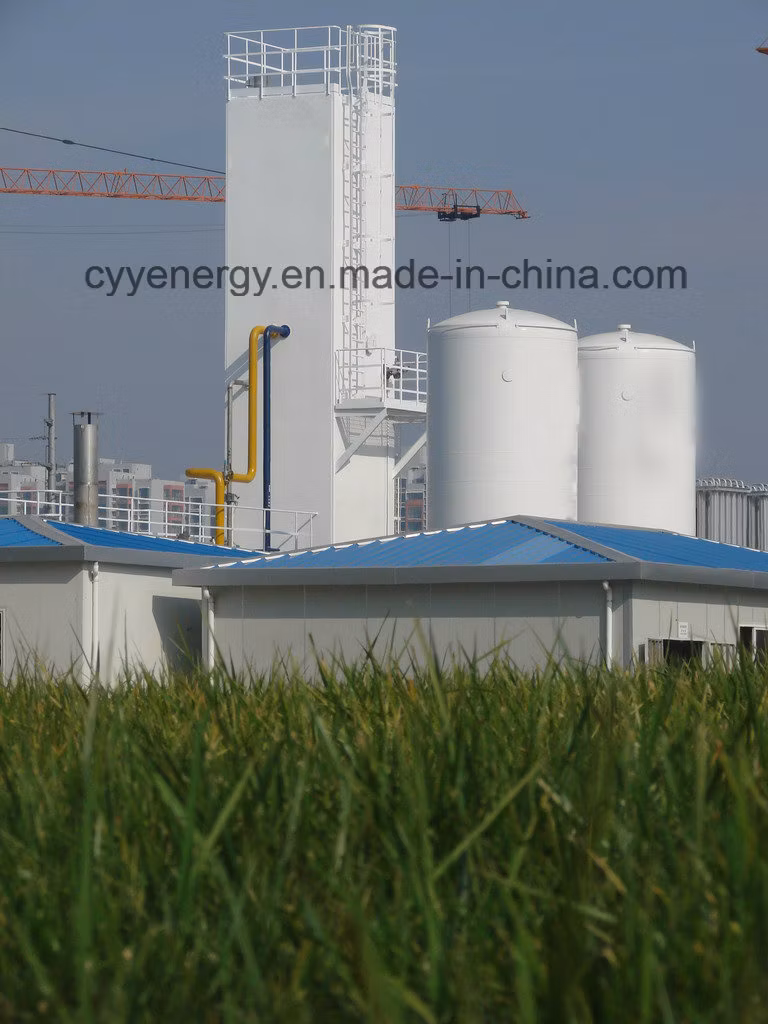

2018 Industry Gas Cryogenic Air Separation Plant
Cryogenic Liquid Storage Tank Specification:
1. Water Capacity: 20m3
2. Working Pressure: 0.8MPa
3. Overall Dimension: Dia2616xL8030mm
4. Empty Weight: 8925kg
5. Insulation Type: Perlite Powder Vacuum Insulation
6. Inner Vessel Material: X5CrNi18-10
7. Outer Shell Material: Q245R
8. Fluid Process: Expand Perlite
9. Design Temperature: -196 degree/+50 degree
10. Certification Provided: BV/SGS/TUV/GOST
Product Features:
Company Information:
Located in Zhejiang, CYY is one of professional suppliers of gas equipment such as gas cylinders, storage tanks and gas filling stations and affiliated equipment parts such as gas cylinder valves etc. We have 10 years' experience in gas industry and have received a good reputation in this field. Our products have been exported to many countries such as U.S.A. and European countries and enjoy popularity all over the world.
Quality and Security System:
We have implemented strict complete quality and secutiry control system, which ensures that each product can meet the quality and security requirement of our customers. We have been adopting the advanced science and technology to produce gas culinders and affiliated equipment since our company is established. In addition, all of our products have been strictly inspected before shipment.
We Are Reliable Partners!
We are dedicated to realizing the largest profit for both our clients and ourselves. We have been making great effort to achieve this win-win project and sincerely hope we will have long-term partnership in the soon future!
Welcome all clients to our compy for visit!
Our Features:
A. Service and Quality:
We aim at providing top quality products and best service for our clients.
B. Fair and Reasonable Price:
We never stop trying to find new ways to reduce the production cost so that we can offer our comsters a competitive price.
C. Quick Delivery Time:
We are dedicated to working very hard to make sure each transportation can be safe and punctual.
D. Our Brand Construction:
We think that every detail thing can make success. We are trying to make our brand well-known all over the world. We are a comprehensive and highly efficient international trade company. Based on our best service, we have established a perfect distrubuting and purchasing network around the world.
Product Specifications:
Product Pictures:
Loading Pictures:
Cryogenic Liquid Storage Tank Specification:
1. Water Capacity: 20m3
2. Working Pressure: 0.8MPa
3. Overall Dimension: Dia2616xL8030mm
4. Empty Weight: 8925kg
5. Insulation Type: Perlite Powder Vacuum Insulation
6. Inner Vessel Material: X5CrNi18-10
7. Outer Shell Material: Q245R
8. Fluid Process: Expand Perlite
9. Design Temperature: -196 degree/+50 degree
10. Certification Provided: BV/SGS/TUV/GOST
Product Features:
VALVE LIST FOR CRYOGENIC STORAGE TANK | ||||
| CODE | ITEM NAME | QTY. | SPECIFICATION | MANUFACTURER |
| A-1 | BOTTOM FILLING VALVE | 1 | DN40 PN50 COMBINED LOADING VALVE | HEROSE |
| A-2 | TOP FILLING VALVE | |||
| A-7 | RESIDUAL LIQUID DISCHARGE VALVE | |||
| CZ-1 | FILLING CONNECTION | 1 | ||
| A-3 | PRESSURE BUILDING INLET VALVE | 1 | DN40 PN50 | HEROSE |
| A-4 | FULL TRYCOCK VALVE | 1 | DN10 PN50 | HEROSE |
| A-5 | VACUUM GAUG TUBE VALVE | 1 | 1/8" ISOLATING VALVE | HOKE |
| A-8 | GAS PHASE VALVE FOR LEVEL GAUGE | 1 | 1/4" NEEDLE VALVE | NUPRO |
| A-9 | BALANCE VALVE FOR LEVEL GAUGE | 1 | 1/4" NEEDLE VALVE | NUPRO |
| A-10 | LIQUID PHASE VALVE FOR LEVEL GAUGE | 1 | 1/4" NEEDLE VALVE | NUPRO |
| A-11 | PRESSURE BUILDING OUTLET VALVE | 1 | DN40 PN50 | HEROSE |
| A-12 | GAS DISCHARGE VALVE | 1 | DN25 PN50 | HEROSE |
| A-13 | LIQUID DISCHARGE VALVE | 1 | DN25 PN50 | HEROSE |
| A-13' | LIQUID DISCHARGE VALVE | 1 | DN25 PN50 | HEROSE |
| A-15 | RELIEF SELECTOR VALVE | 1 | DN25 PN50 THREE WAY DIVERT VAVLE | HEROSE |
| A-17 | SHUT-OFF VALVE FOR ECONOMIZER | 1 | DN15 PN50 | HEROSE |
| F-1 | AUXILIARY LIQUID OUTLET VENT | 1 | DN25 | MADE IN CHINA |
| F-2 | AUXILIARY GAS OUTLET VENT | 1 | DN20 | MADE IN CHINA |
| VR-1 | VACUUM PROBE | 1 | 1/8" | HASTING |
| C-1 | PRESSURE REGULATOR | 1 | DN20 | CASH |
| C-2 | CRYOGENIC ECONOMIZERS | 1 | DN15 | CASH |
| L1-1 | LEVEL GAUGE | 1 | WIKA | |
| P1-1 | PRESSURE GAUGE | 1 | WIKA | |
| FB-1A | RUPTURE DISC FOR INNER VESSEL | 1 | HUALI | |
| FB-1B | RUPTURE DISC FOR INNER VESSEL | 1 | HUALI | |
| FB-2 | EXPLOSION-PROOF DEVICE FOR OUTER VESSEL | 1 | MADE IN CHINA | |
| YA-1A | SAFETY RELIEF VALVE FOR INNER VESSEL | 1 | DN25 | HEROSE |
| YA-1B | SAFETY RELIEF VALVE FOR INNER VESSEL | 1 | DN25 | HEROSE |
| RK-1 | SAFETY RELIEF VALVE FOR PIPELINE | 1 | 1/4" | REGO |
| RK-2 | SAFETY RELIEF VALVE FOR PIPELINE | 1 | 1/4" | REGO |
| RK-3 | SAFETY RELIEF VALVE FOR PIPELINE | 1 | 1/4" | REGO |
| B-1 | PRESSURE BUILDING UNIT | 1 | ||
| VP-1 | VACUUM VALVE | 1 | ||
Company Information:
Located in Zhejiang, CYY is one of professional suppliers of gas equipment such as gas cylinders, storage tanks and gas filling stations and affiliated equipment parts such as gas cylinder valves etc. We have 10 years' experience in gas industry and have received a good reputation in this field. Our products have been exported to many countries such as U.S.A. and European countries and enjoy popularity all over the world.
Quality and Security System:
We have implemented strict complete quality and secutiry control system, which ensures that each product can meet the quality and security requirement of our customers. We have been adopting the advanced science and technology to produce gas culinders and affiliated equipment since our company is established. In addition, all of our products have been strictly inspected before shipment.
We Are Reliable Partners!
We are dedicated to realizing the largest profit for both our clients and ourselves. We have been making great effort to achieve this win-win project and sincerely hope we will have long-term partnership in the soon future!
Welcome all clients to our compy for visit!
Our Features:
A. Service and Quality:
We aim at providing top quality products and best service for our clients.
B. Fair and Reasonable Price:
We never stop trying to find new ways to reduce the production cost so that we can offer our comsters a competitive price.
C. Quick Delivery Time:
We are dedicated to working very hard to make sure each transportation can be safe and punctual.
D. Our Brand Construction:
We think that every detail thing can make success. We are trying to make our brand well-known all over the world. We are a comprehensive and highly efficient international trade company. Based on our best service, we have established a perfect distrubuting and purchasing network around the world.
Product Specifications:
LOX/LIN/LAR CRYOGENIC STORAGE TANK SPECIFICATION | ||||||
| Items | Specification | Valid Volume | WP | Dimension | Empty Weight | LOX/LIN/LAR |
| 1 | m3 | MPa | mm | kg | kg | |
| 2 | CFL-5/1.0 | 5 | 1 | Dia2216x4405 | 4130 | 9830/8180/11130 |
| 3 | CFL-5/1.75 | 5 | 1.75 | Dia2216x4405 | 4400 | 10100/8450/11400 |
| 4 | CFL10/1.0 | 10 | 1 | Dia2216x7098 | 6250 | 17920/14620/20620 |
| 5 | CFL-10/1.75 | 10 | 1.75 | Dia2216x7098 | 6861 | 18261/14961/20861 |
| 6 | CFL-15/0.8 | 15 | 0.8 | Dia2616x6520 | 7380 | 24480/22530/28380 |
| 7 | CFL-15/1.75 | 15 | 1.75 | Dia2616x6520 | 8501 | 25601/20651/29501 |
| 8 | CFL-20/0.8 | 20 | 0.8 | Dia2616x8030 | 8925 | 31735/25125/36925 |
| 9 | CFL-20/1.75 | 20 | 1.75 | Dia2616x8030 | 10378 | 33178/26578/38378 |
| 10 | CFL-30/0.8 | 30 | 0.8 | Dia2616x11070 | 12166 | 46366/36466/54166 |
| 11 | CFL-30/1.75 | 30 | 1.75 | Dia2616x11070 | 14300 | 48500/38600/56300 |
| 12 | CFL-50/0.8 | 50 | 0.8 | Dia3020x12685 | 19494 | 76494/59994/89494 |
| 13 | CFL-50/1.75 | 50 | 1.75 | Dia3020x12685 | 23050 | 80050/63550/93050 |
| 15 | CFL-100/0.8 | 100 | 0.8 | Dia3520x17585 | 33800 | 147800/114800/174800 |
| 16 | CFL-100/1.6 | 100 | 1.6 | Dia3520x17585 | 40550 | 154550/121550/181550 |
Product Pictures:
Loading Pictures:
